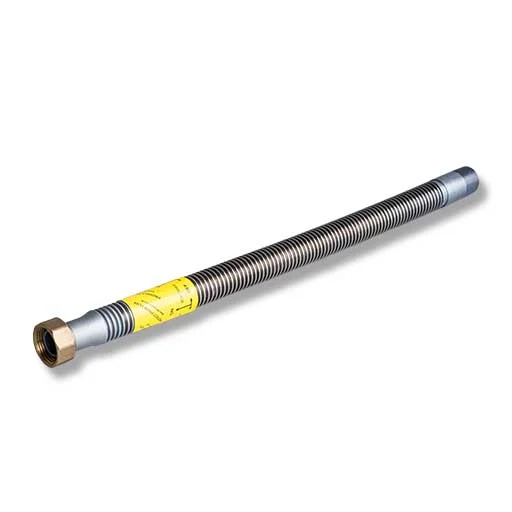

Flexible Meter Connector – 73-643-001

£10.00

NKT Part No. : 73-643-001
Size : 3/4″x 3/4″
Weight(GMS) : 224.37
Gross Weight( GMS) : 235

Description:
Gas Meter Anaconda 3/4″” BS 746 nut/liner x 3/4″” BSP taper male, 455 mm.
Convoluted stainless steel hose conforms to BS EN ISO 10380:2012 & BS 669-2:1997 with end connections to BS 746:2014+A1:2009 (nut and liner) and BSP taper male thread to ISO 7-1:1994.
Supplied with a washer
For gas meter installation.

Adaptor type : Connector
Thread Connection : BS 746 F x BSP TM
Length : 455 mm
Material : Stainless Steel
Nominal Bore : 20 mm (3/4″)
Size : 20 mm
Type : Meter Connector
Type of connector : Convoluted stainless steel
